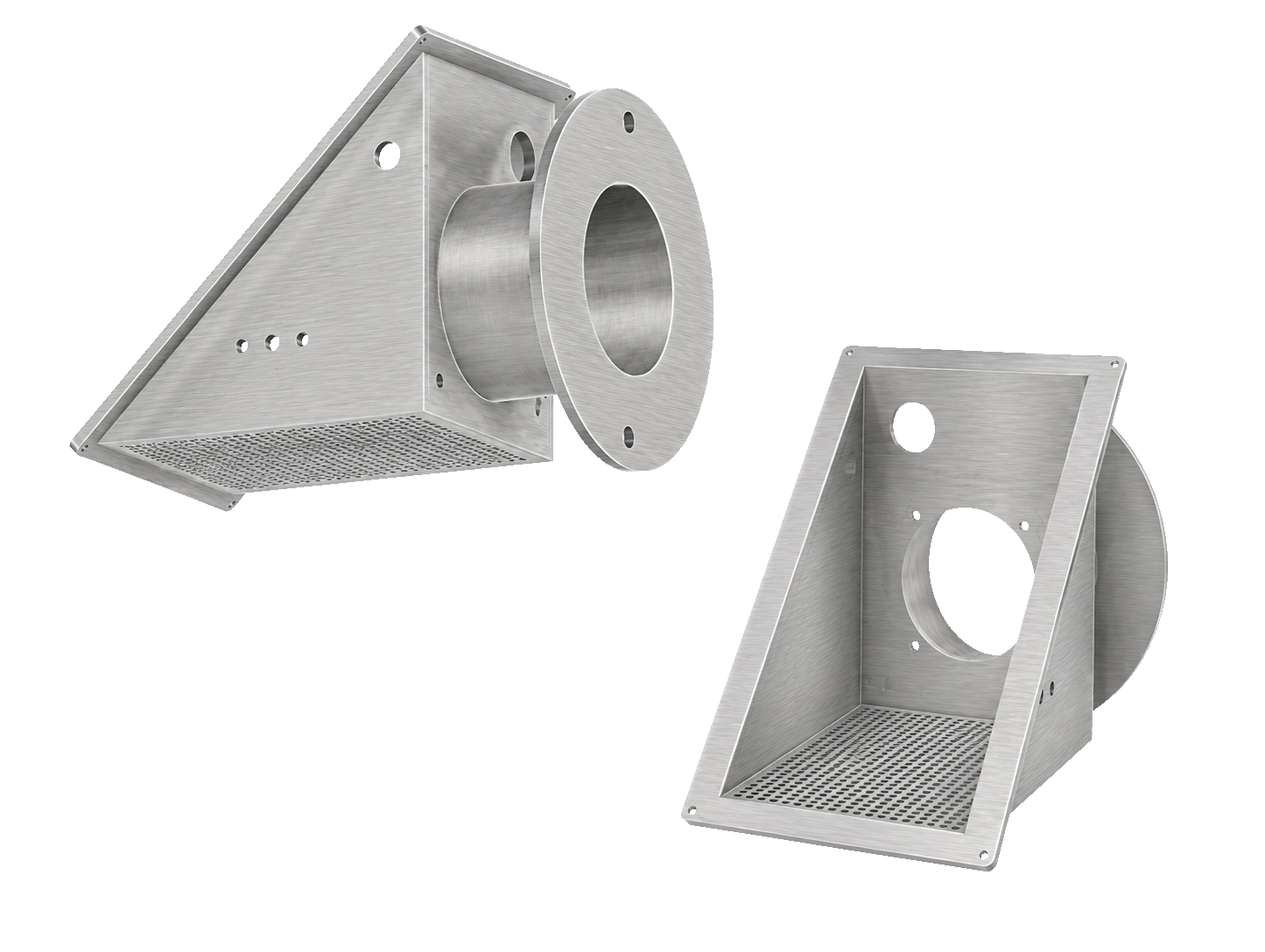

Durvela Solar Fan Enclosure – Stainless Steel Replacement Housing

Designed for the Durvela Solar Compost Aeration Fan Kit.

The enclosure accommodates:

• Durvela waterproof 12 VDC replacement fan
• Durvela solar panel
• Maintained ON-OFF-ON power selector
• Adjustable capillary thermostat
• Remke RSR108 cord grip
• Panel-mounted 5.5 × 2.1 mm DC backup-power jack
• Internal WAGO and resettable-fuse wiring assembly

• Stainless steel replacement enclosure for the Durvela Solar Compost Aeration Fan Kit
• Large two-hole flange for attachment to the composter’s unloading-side vent
• Integrated air tube connecting the composter vent to the fan
• Internal four-bolt mounting position for the 12 VDC fan
• Perforated bottom panel for ventilation and drainage
• Preformed openings for the system’s electrical and thermostat components
• Designed for straightforward replacement using the existing Durvela hardware

• Application: Solar compost aeration system
• Construction: Stainless steel
• Composter mounting: Large circular flange with two bolt holes
• Air connection: Integrated tube between mounting flange and fan mount
• Fan mounting: Four-hole internal fan mount
• Cord-grip opening: 22 mm
• DC power-jack opening: 6 mm
• Power-selector opening: 12 mm
• Thermostat shaft opening: 6.5 mm
• Thermostat mounting: Two adjacent screw holes
• Cavity ventilation: Perforated bottom panel

Disconnect the solar panel and unplug the 12 VDC supply before beginning work.

Attach the large circular flange to the unloading-side vent using both mounting bolts. Install the fan against the internal fan mount using all four fasteners. Tighten the hardware evenly and do not overtighten or distort the enclosure.

Install the cord grip, DC backup-power jack, maintained selector switch and capillary thermostat in their corresponding preformed openings.

Before reinstalling the solar panel, apply a thin, continuous bead of silicone sealant between the panel and enclosure flange—only enough to help limit moisture ingress. Install the four solar-panel screws evenly without squeezing out all the sealant.

Follow the Durvela Solar Fan Enclosure Installation Manual for complete instructions.

Download the Durvela Solar Fan Enclosure Installation Manual – Rev B

This listing is for the replacement enclosure only. The fan, solar panel, thermostat, selector switch, DC power jack, cord grip, fuse assembly, wiring and mounting hardware are not included unless specifically identified as part of the selected package.

Retain reusable hardware when removing the existing enclosure. Confirm the mounting-hole pattern and component configuration before ordering for an earlier or modified system.

Apply a thin, continuous bead of silicone sealant between the solar panel and enclosure flange during installation. Use only enough sealant to help limit moisture ingress.

The 12 VDC backup supply should be connected only when additional aeration is required and available sunlight is insufficient. Move the maintained selector to SOLAR, OFF or ADAPTER as appropriate.
